LDAP server

This is step 3 of the setup wizard (optional). It is needed for signing in to the web console with Active Directory accounts and for reporting by Active Directory group. Later you can open it from the Setting management menu.

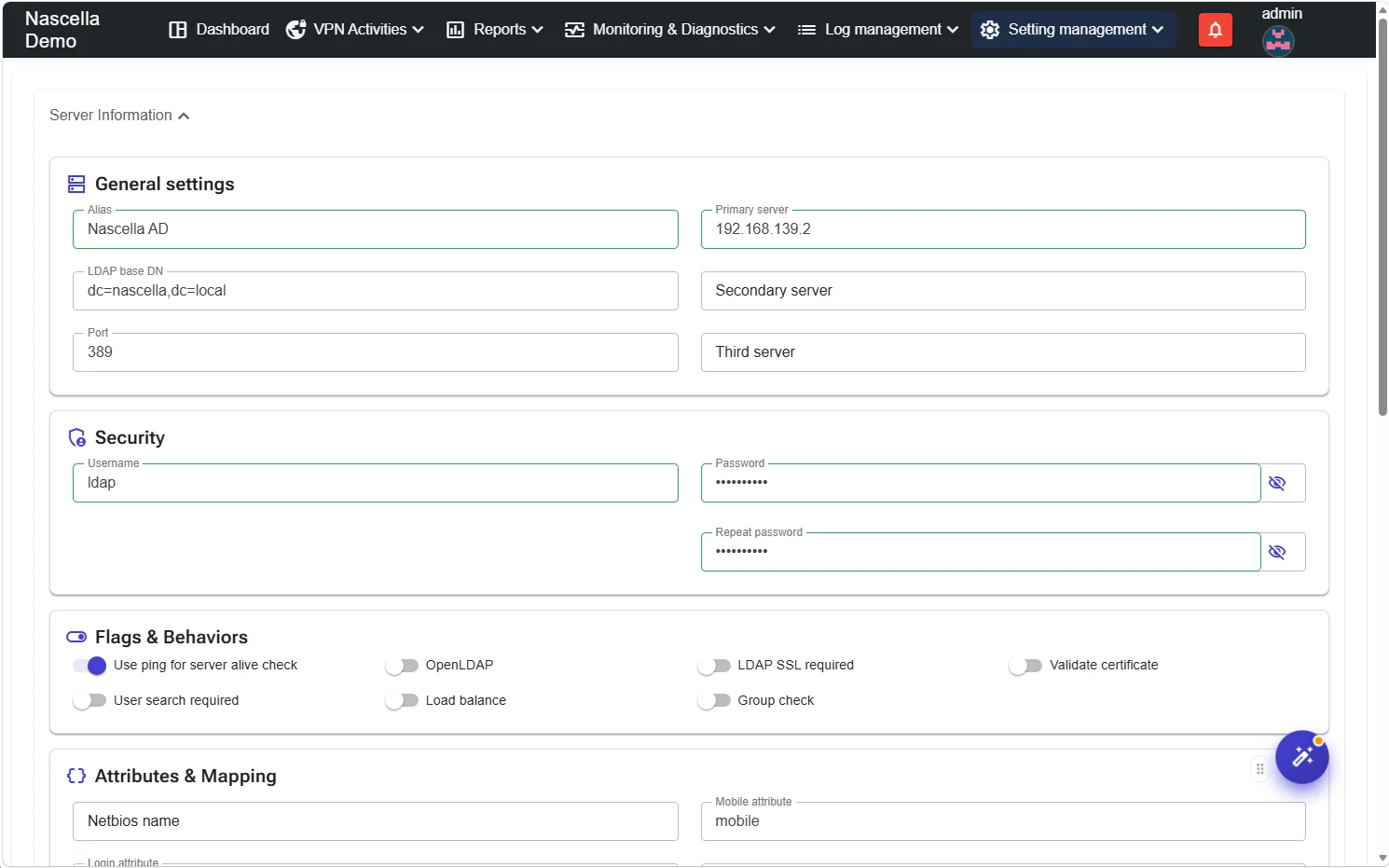

The minimum you need

In most environments these fields are enough; the other fields come with ready values for Active Directory.

Field	Example
Alias	Nascella AD — the name shown in lists
Primary server	192.168.139.2 or the domain controller's name
LDAP base DN	dc=nascella,dc=local
Port	389
Username / Password	An LDAP account that can search the directory

Add more domain controllers in Secondary server and Third server.

Flags and behaviors

Option	Default	Description
Use ping for server alive check	On	Pings the server before connecting.
OpenLDAP	Off	Turn on if the directory is OpenLDAP rather than Active Directory.
LDAP SSL required	Off	Uses an encrypted connection (LDAPS).
Validate certificate	Off	Validates the server certificate over LDAPS.
User search required	Off	At sign-in the user is first looked up with the LDAP account above to find their DN, then verified with that DN. When off, the user is verified directly with the name they typed.
Load balance	Off	Spreads requests across the defined servers.
Group check	Off	At sign-in, checks the user's group membership against Allowed groups.

Using SSL

Turn on LDAP SSL required and change the port accordingly (usually 636 for LDAPS). If certificate validation is on and the server certificate is issued by your corporate certificate authority, you may need to upload that authority's certificate under Trusted Certificates.

Attributes and mapping

These come ready for Active Directory; change them only if your directory is structured differently.

Field	Default
Netbios name	The short domain name, for example nascella
Login attribute	sAMAccountName
Mobile attribute	mobile
Group attribute	Group
All user attributes	Attributes read for each user (C, CN, COMPANY, DEPARTMENT, DISPLAYNAME…)
User search attributes	(&(sAMAccountType=805306368)(|(mail=*%userinput%*)(sAMAccountName=*%userinput%*)(dn=*%userinput%*)))
Custom attribute 1–5	Extra attributes you want to read

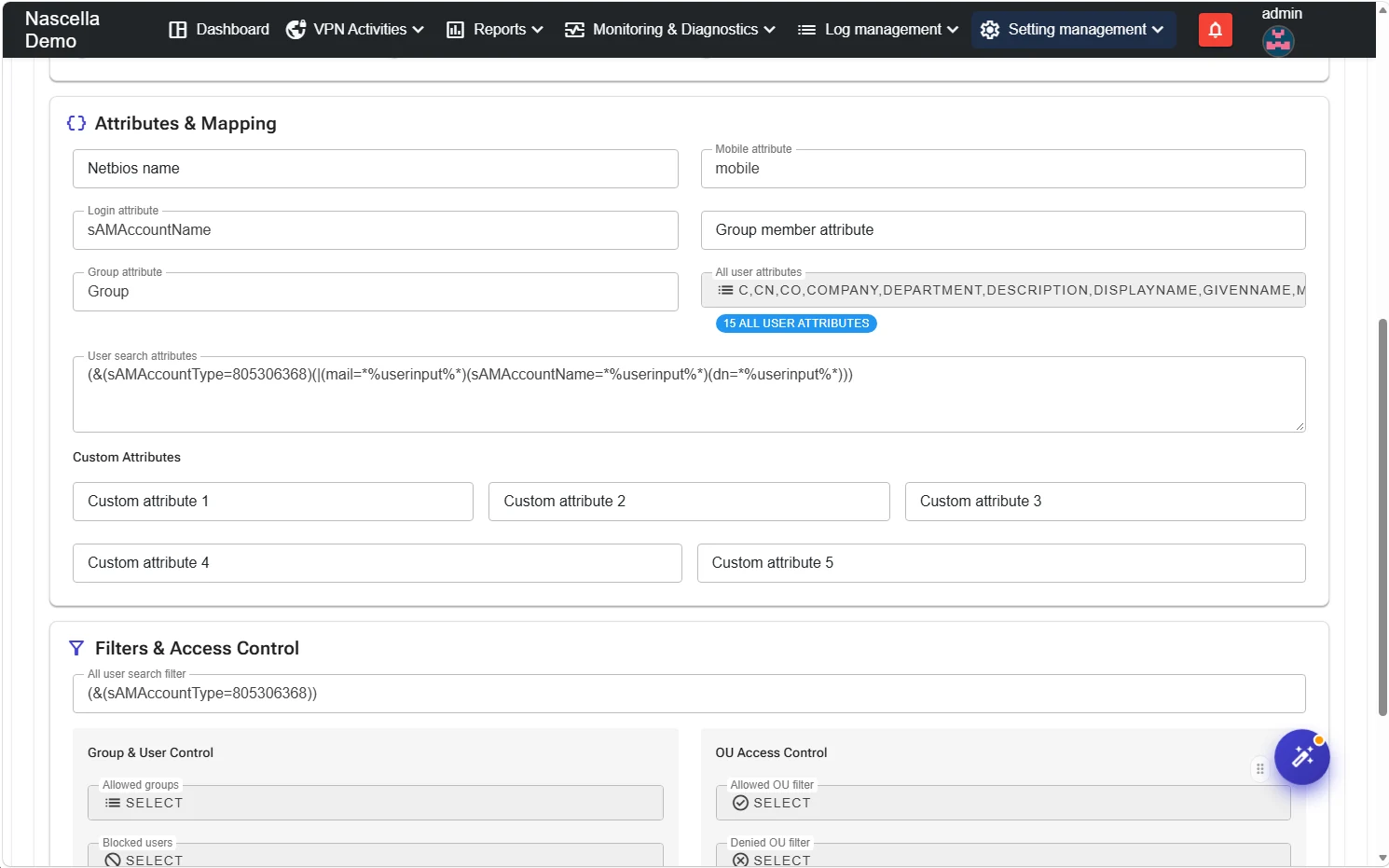

Filters and access control

Field	Description
All user search filter	Default (&(sAMAccountType=805306368)) — user accounts only.
Allowed groups / Blocked users	Limit to specific groups or leave specific users out.
Allowed OU filter	Reads objects and users only from the OUs you select.
Denied OU filter	Leaves out the OUs you select and looks at the rest.

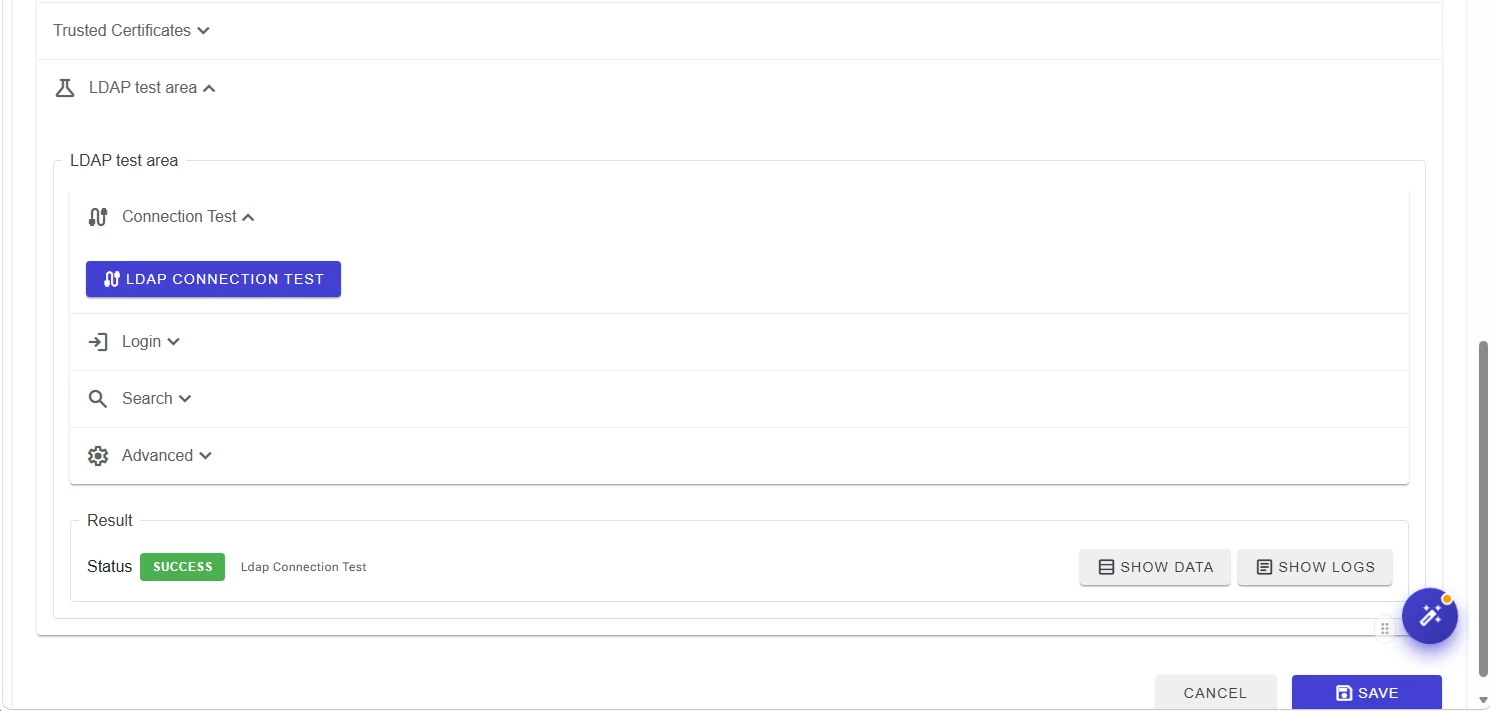

Test and save

After filling in the fields, verify them in the LDAP test area at the bottom before saving.

1. Under Connection Test, click Ldap Connection Test.
2. Result should show Status: Success. Show data opens the returned data, Show Logs the detailed logs.
3. You can also use the Login and Search sections to check that a user can sign in and be found.
4. Click Save.

Test before you save

The test uses the values currently on the screen, even if they are not saved yet; try a change first, then save it.

Next step

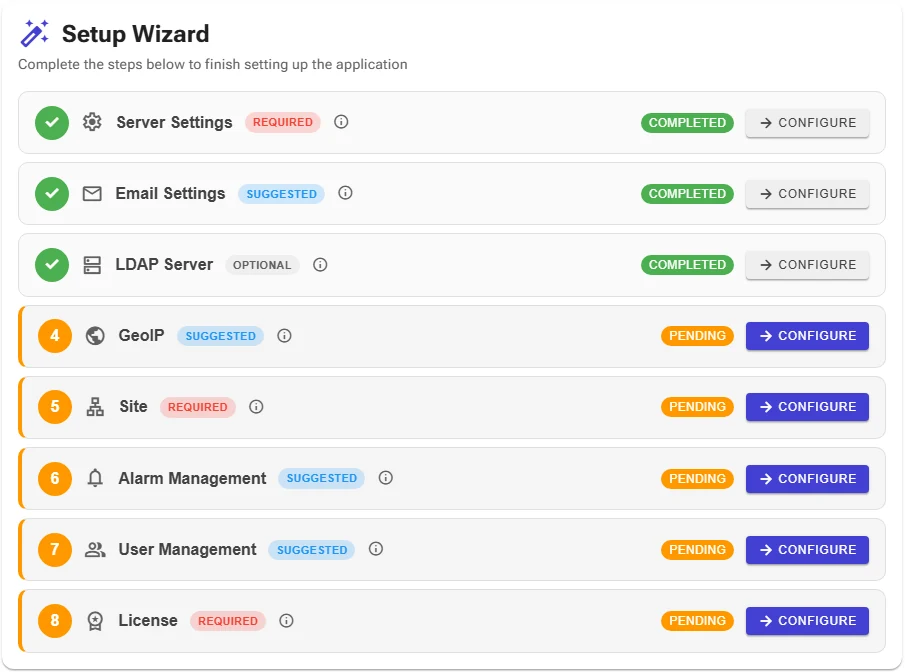

Click Continue setup to return to the wizard; the LDAP Server step shows as Completed.

Next step: GeoIP.
